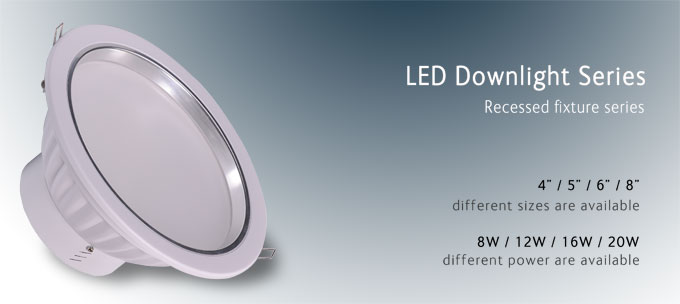

LED DOWNLIGHTER

LED downlight
Super bright SMD5630 LED as lighting sources, high efficiency,energy-saving, eco-friendly;Aluminium alloy frame with high-thermal conductivity, simple and nice;Integrated heat dispersion structure, low lumens depreciation and long lifespan; Built-in reflector，high light output and uniformly light; Built-in constant current driver, universal available; Easy to install.

Features

luminous efficacy >80lm/W;

Light source: low power SMD LEDs (placed in the edge of the plate)

Quick response when power on , no noise, no UV, no strobe light;

Adpot own-designed LED driver with high power factort;

Low luminous decay, Quick response when power on, long lifespan, no noise, no UV, no strobe light, no pollution;

Lightguide material：Al-alloy shell, High thermal conductivity

Color: Single color,bi-colour, RGB; (various colors available)

Input Voltage：AC100V~240V available

Color temperature: 5500K-7000K( Optional, according to your requirement )

Ambient temperature: -20℃ ~40℃

Lifetime: ≥30,000hrs

Beam angle: 90°

Installation: Convenient and efficient, push-in type .

※Certificate:CE, RoHS & ETL approved, with 2 years quality warranty.

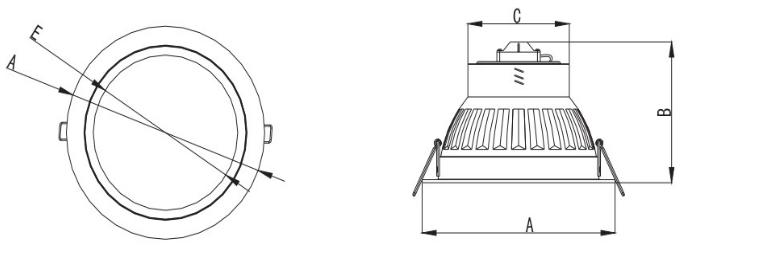

Dimensional Drawing

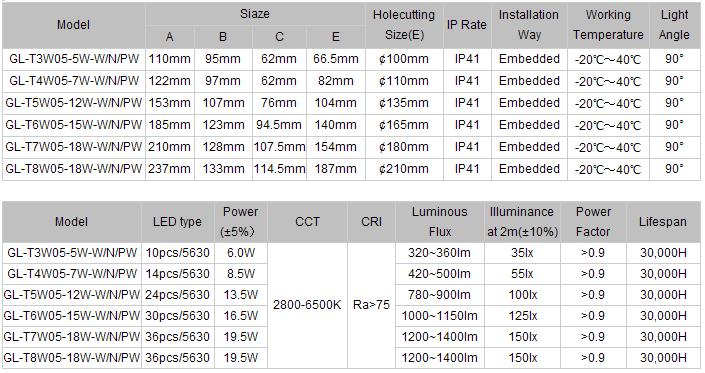

Parameter

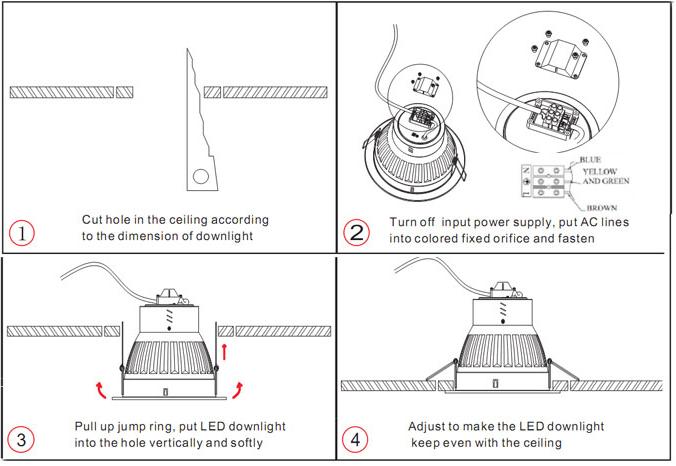

Installation Drawing

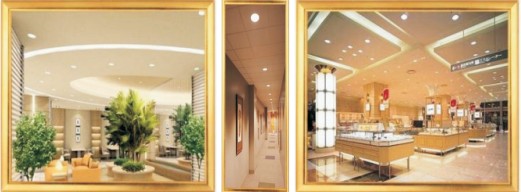

Application:

◎ Commercial  lighting, environmentally friendly lighting, warehouse , supermarket  and home illumination.

◎ IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hotel  and other public places.

◎ Exhibition Hall, art galleries, museums, offices, reading-room, corridor, staircase lighting,such as contour range

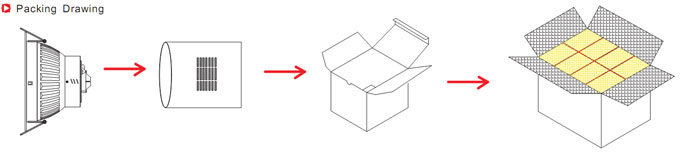

Package of LED ceiling light :

NOTE :

• When installation LED panel light, try to avoid the minefields, strong magnetic field and high-pressure region.
• Ensuring a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
• Installed in a well-ventilated place to ensure appropriate environmental temperature.
• Using the led panel light, please check the local voltage compliance product requirements.
• To prohibit the live wiring, check to confirm wiring is correct, check the no short-circuit, and then power!
• In case of failures, do not maintenance in private.
